| 3pc float ball valve 800LB |
|
|
|
3pc float ball valve 800LB |
|
3PC Body ; Full Bore ; 1-1/4" ; 1000PSI |
|
|
Optional Locked device Handle |
|
| |
Body |
CF8M |
|
| |
Cap |
CF8M |
|
| |
Seat |
RPTFE |
|
| |
Bal |
SS304 |
|
| |
Gasket |
PTFE |
|
| |
Stem seal |
PTFE |
|
| |
Stem |
SS304 |
|
| |
Stem Packing |
PTFE |
|
| |
Packing Gland |
SS304 |
|
| |
Spring washer |
SS304 |
|
| |
Handle |
SS304 |
|
| |
Stem Nut |
SS304 |
|
| |
|
|
|
|
|
|
 |

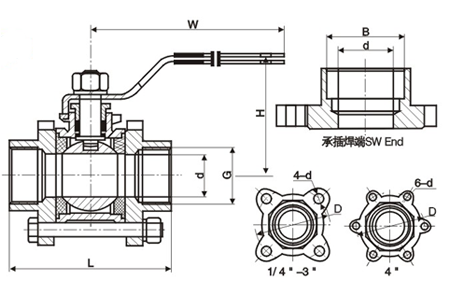

| NPS |
DN |
d |
L |
H |
W |
4-d |
B1 |
B2 |
1/4" |
6 |
11.5 |
65 |
46 |
95 |
7 |
12 |
15 |
3/8" |
10 |
12 |
65 |
46 |
95 |
7 |
14 |
17 |
1/2" |
15 |
15 |
75 |
46 |
110 |
8 |
18 |
21.3 |
3/4" |
20 |
20 |
85 |
54 |
110 |
8.5 |
25 |
26.9 |
1" |
25 |
25 |
90 |
64 |
140 |
8.5 |
32 |
33.7 |
1-1/4" |
32 |
32 |
112 |
69 |
140 |
10 |
38 |
42.4 |
1-1/2" |
40 |
38 |
120 |
76 |
155 |
10 |
45 |
48.3 |
2" |
50 |
50 |
145 |
86 |
180 |
11 |
57 |
60.3 |
2-1/2" |
65 |
65 |
170 |
120 |
220 |
16 |
76 |
76.1 |
3" |
80 |
80 |
200 |
150 |
260 |
18 |
89 |
88.9 |
4" |
100 |
100 |
263 |
170 |
350 |
20 |
108 |
114.3 |
|
|
|
|
|
